Body Type: Metal Air Inlet: 1/4" BSP Q/Release

AIR TOOLS – Page 13

Q: Short Plastic Blow Gun

Body Type: Plastic Air Inlet: 1/4" BSP Q/Release

Q: Suction Feed Spray Gun

Air Pressure: 50psi / 2bar - 3.4bar Air Inlet: 1/4" Air Consumption: 5 - 11cfm Cup Capacity: 750ml Feed Type: Suction Fluid Nozzle: 1.5mm

Q: Tundra 114mm Short Blow Gun

Air blow gun with stainless steel nozzle 1/4 (Female) BSP threads Variable speed triggers Soft moulded handle with rubber grip

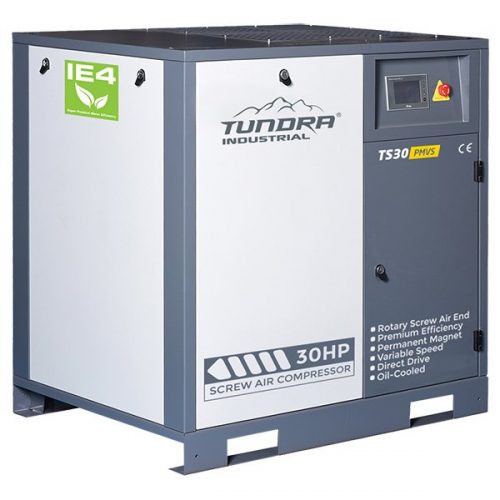

Q: Tundra 30HP Screw Compressor 10 Bar 415V

Permanent magnet oil cooled variable speed direct driven screw compressor Fitted with an efficient heavy duty three-phase electric motor (IE4) Low noise levels with sound levels measured at 69dB(a) from a 1.5 meter distance x 96% efficiency at full load 100% duty cycle application Discharge air connection: 1" Dimensions: 1150mm (L) x 895mm (W) x 1100mm (H) Weight: 370kg Voltage: 3 Phase (50A) Power: 30HP / 22kW Input Current: 50A Motor Speed: 3000rpm Max. Pressure: 10Bar / 145psi Free Air Delivery (FAD): 99cfm / 2.8m?/min @10Bar

Q: Tundra 330mm Long Blow Gun

Air blow gun with stainless steel outlet 13" long reach stainless steel nozzle, threaded 1/4 BSP (Female) Variable speed triggers Soft moulded handle with rubber grip Stainless steel nozzle

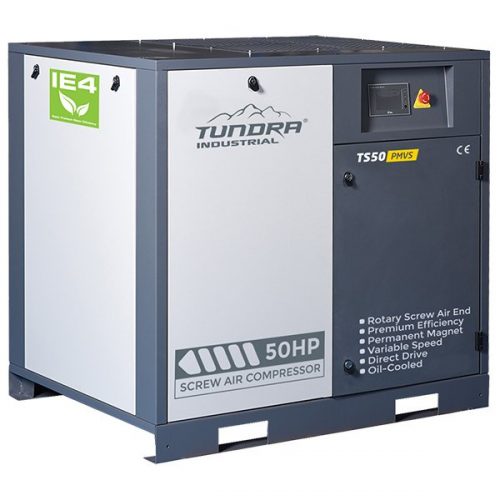

Q: Tundra 50HP Screw Compressor 10 Bar 415V

Permanent magnet oil cooled variable speed direct driven screw compressor Fitted with an efficient heavy duty three-phase electric motor (IE4) Low noise levels with sound levels measured at 70dB(a) from a 1.5 meter distance 96% efficiency at full load 100% duty cycle application Discharge air connection: 1-1.5" Dimensions: 1300mm (L) x 1000mm (W) x 1210mm (H) Weight: 505kg Voltage: 3 Phase (50A) Power: 50HP / 37kW Input Current: 90A Motor Speed: 3000rpm Max Pressure: 10bar / 145psi Free Air Delivery: 209cfm / 5.9m?/min @ 10Bar

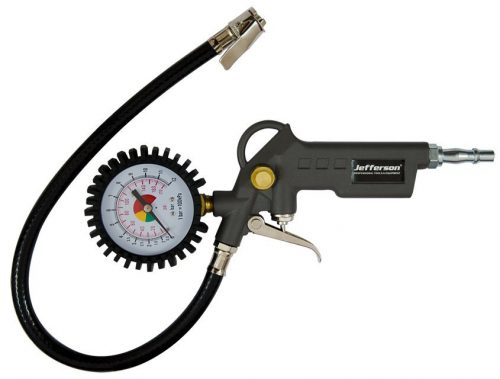

Q: Tyre Inflating Gun Flexible Connector

Air Pressure: 0 - 174PSI / 0 -12 bar Push fit valve connector 360? turning capacity

AIR TOOLS

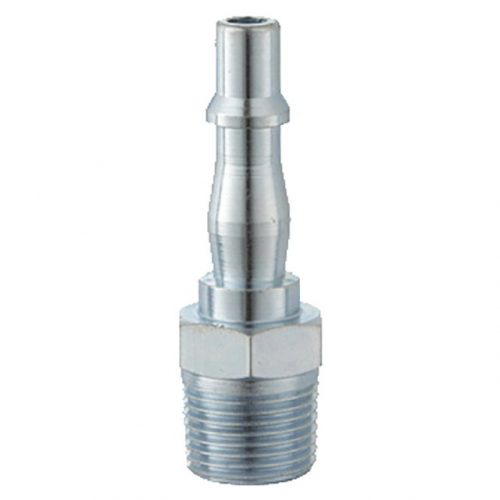

Rp 1/4″ Male Standard Adaptor

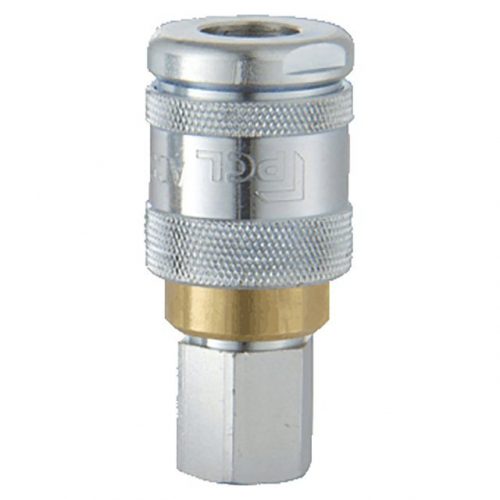

Rp 3/8″ Female Coupling 100 Series

Short Metal Blow Gun

Short Plastic Blow Gun

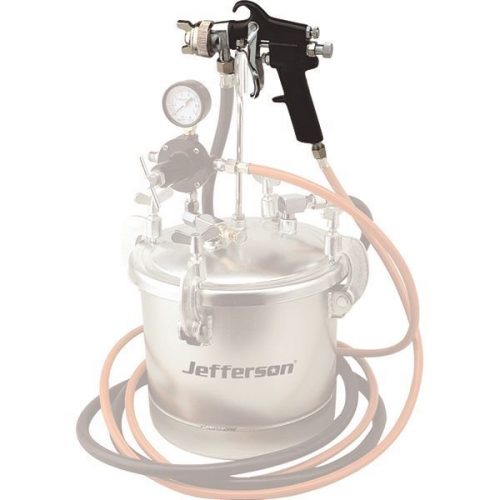

Spray Gun

Suction Feed Spray Gun

Tundra 114mm Short Blow Gun

Tundra 30HP Screw Compressor 10 Bar 415V

Tundra 330mm Long Blow Gun

Tundra 50HP Screw Compressor 10 Bar 415V

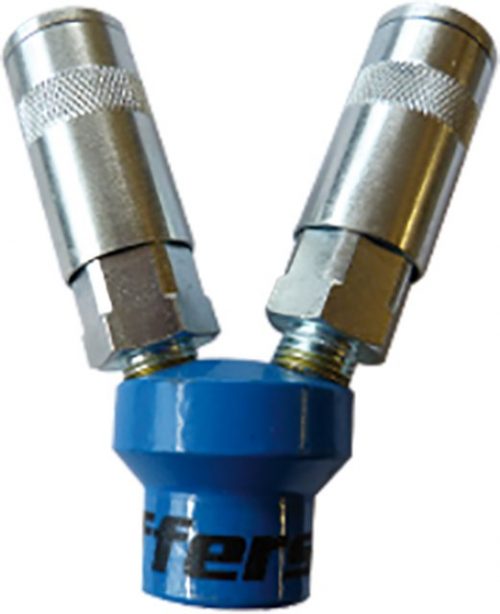

Twin Coupling 1/4″ Female to 2 x Female Q/Release

Tyre Inflating Gun Flexible Connector
